WS-C3850-48XS-S

฿302,825.00 ไม่รวม VAT

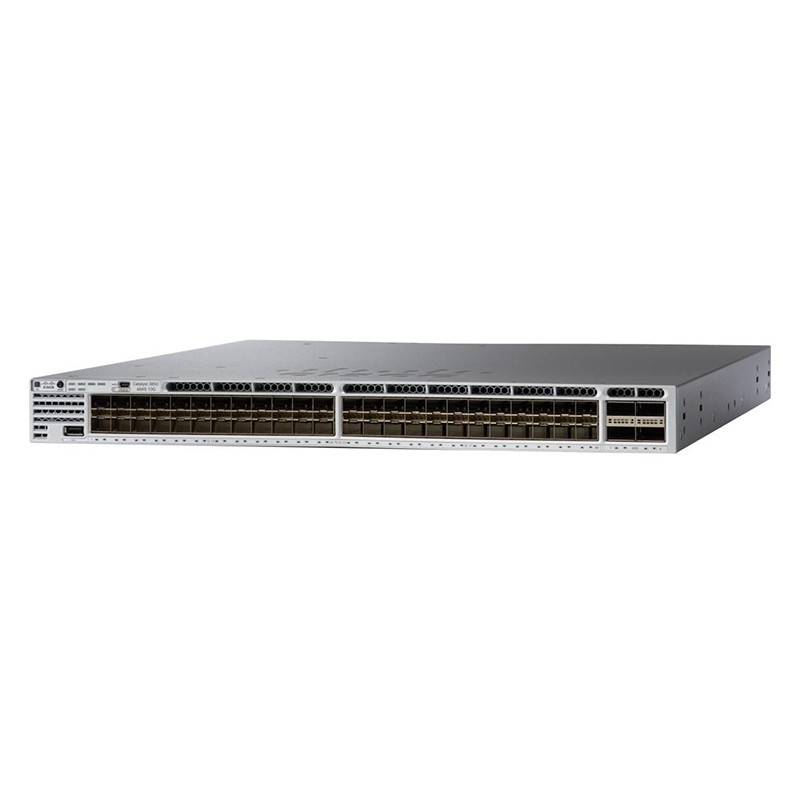

Cisco Catalyst 3850 48 Port 10G Fiber Switch IP Base

Description

WS-C3850-48XS-S Specification

model info:

WS-C3850-48XS-S

enclosure type

Rack-mountable – 1U

Ports

48 x SFP+ ports

Network management Interface

● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

1280 Gbps

Maximum stacking number

9

Stack Bandwidth

480Gbps

FNF entries

96,000 flows

Maximum VLANs IDs

1,000

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

8 GB

Flash Memory

8 GB

Wireless

Number of AP per switch/stack

100

Number of wireless clients per switch/stack

2000

Total number of WLANs per switch

64

Wireless bandwidth per switch

Up to 40 Gbps

Supported Aironet AP series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 network module slot and 1 power redundant slot

Stacking cable

●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable (recommended)

●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length

Power supply

PWR-C3-750WAC-R

Power Device

Power supply – redundant – plug-in module

Power Redundancy

optional

Miscellaneous

Dimension

4.45 X 44.5 x 51.1 cm (1.75 x 17.5 x 20.1 inch)

Weight

7.45 kg

Rack Mounting Kit

optional

 MTBF in hours

286,900

Compliant Standards

● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3

System software / license

System software

IOS IP Base (Upgradable)

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Features

●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP

● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast  ●Dynamic Trunking Protocol (DTP) ● port CoS Trust

and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies

● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority

Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS

and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency

● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4  ● VRF-lite  ● PIM-SM/DM,

PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network security

● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)
● Bidirectional data support on a SPAN ● User authentication
● Private VLAN  ●Router and VLAN ACLs  ● complete identity and security
● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs
●  Bridge protocol data unit (BPDU) Guard
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security

Management

●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB
●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB
●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB
●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB
●CISCO-CIRCUIT-INTERFACE-MIB
●CISCO-ENTITY-VENDORTYPE-OID-MIB
●CISCO-CONTEXT-MAPPING-MIB
●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB
●CISCO-EIGRP-MIB
●CISCO-EMBEDDED-EVENT-MGR-MIB
●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB
●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB
●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB
●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB
●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB
●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB
●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB
●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB
●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB
●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB
●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB
●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB
●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB
●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB
●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB
●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB
●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB
●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB
●CISCO-SMART-INSTALL-MIB

●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB
●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB
●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB
●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB
●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB
●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB
●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB
●LLDP-MIB ●NOTIFICATION-LOG-MIB
●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB
●POWER-ETHERNET-MIB ●RMON2-MIB
●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB
●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB
●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB
●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB
●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB
●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB
●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB
●CISCO-LWAPP-CLIENT-ROAMING-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB
●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB
●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB
●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB
●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB
●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB
●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB

Technical Support and Services

● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services

Environmental Ranges

With AC power supply Operating environment and altitude

Operating temperature up to 5000 ft (1500 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception up to 5000 feet (1500 m)

23ºF to 122ºF (-5ºC to 50ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 113ºF (-5ºC to 45ºC)

With DC power supply Operating environment and altitude (NEBS)

Operating temperature up to 6000 ft (1800 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Operating temperature up to 13,000 ft (4000m)

23ºF to 95ºF (-5ºC to 35ºC)

Short-term exception up to 6,000 feet (1800 m)

23ºF to 131ºF (-5ºC to +55ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 122ºF (-5ºC to +50ºC)

Short-term exception up to 13,000 feet (4000 m)

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45º)

Storage environment

 -40ºF to 160ºF (-40ºC to 70ºC)

Operating altitude

Up to 13,000 Feet (Up to 4000 Meters)

Storage altitude

Up to 15,000 Feet (Up to 4573 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing
