LowPriceSystem จำหน่ายสินค้า IT และงานติดตั้ง

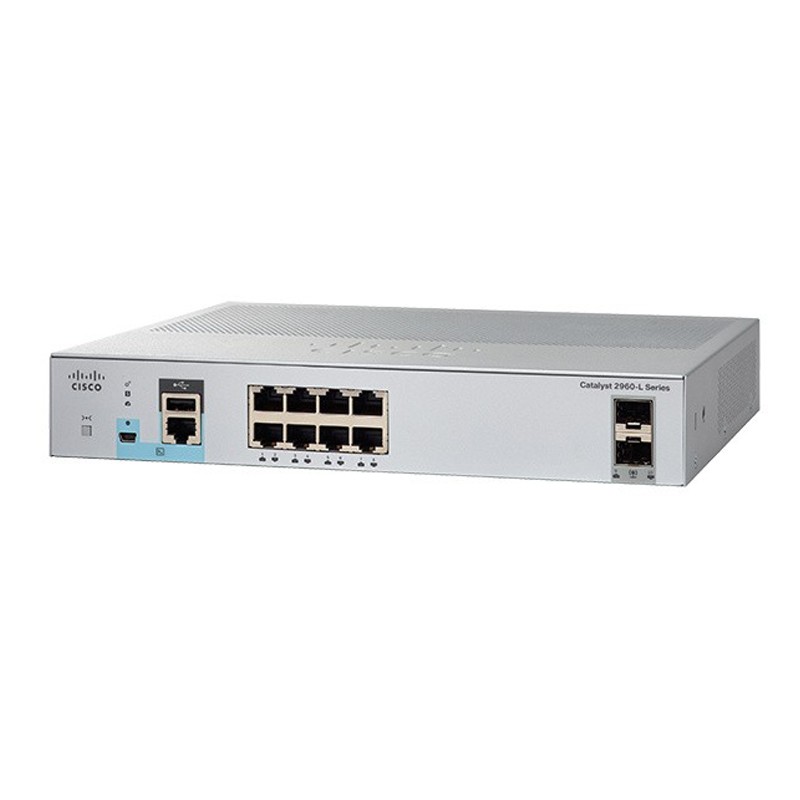

WS-C2960L-8TS-LL

฿4,000.00 ไม่รวม VAT

Catalyst 2960L 8 port GigE, 2 x 1G SFP, LAN Lite

Description

WS-C2960L-8TS-LL Specification

Configurations
10/100/1000 Ethernet Ports 8
Uplink Interfaces 2 SFP
Available PoE Power
Fanless Y
Dimensions (H x D x W) 1.73 x 8.45 x 10.56 in. (4.4 x 21.5 x 26.8 cm)
Net Weight 4.45 lb (2.02 kg)
Console Ports
RJ45 Ethernet 1
USB mini-B 1
USB-A port for storage and Bluetooth console 1
Memory and Processor
CPU ARMv7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Performance
Forwarding bandwidth 10 Gbps
Switching bandwidth 20 Gbps
Forwarding rate (64-byte L3 packets) 14.88 Mpps
Unicast MAC addresses 8K
Maximum active VLANs 64
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 1
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
MTBF in hours (Data) 2,448,133
MTBF in hours (PoE) 315,044
Environment
Operating temperature
Up to 5,000 ft 23ºF to 113ºF (–5ºC to 45ºC)
Up to 10,000 ft 23ºF to 104ºF (–5ºC to 40ºC)
Operating altitude 10,000 ft (3000m)
Operating relative humidity 5% to 90% at 40ºC
Storage temperature –13º to 158ºF (–25º to 70ºC)
Storage altitude 15,000 ft (4500m)
Storage relative humidity 5% to 95% at 65ºC
Storage altitude Minimum ambient temperature for cold start is 0°C (32°F)
Electrical Data
Voltage (autoranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.13A to 0.22A
Power rating (maximum consumption) 0.04 kVA
Power consumption (watts)

0% traffic

10% traffic

100% traffic

Weighted average

13.014.8

14.9

14.2

Safety and Compliance
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: immunity EN55024, CISPR24, EN300386, KN24
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
Connectors and Interfaces
Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full duplex
System status: system, PoE, and link speed
Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
