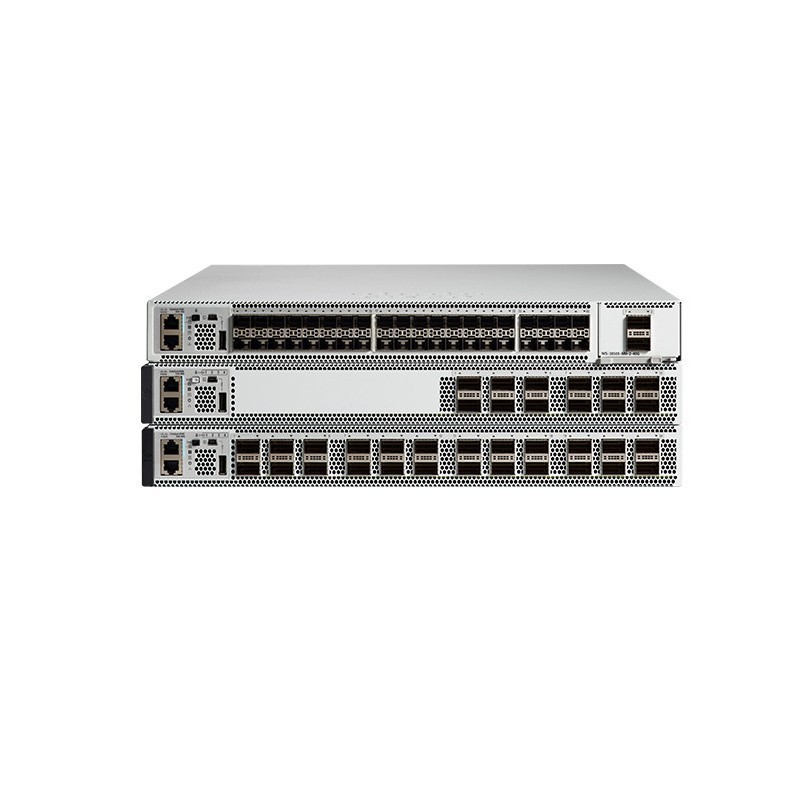

C9500-24Q-10E

Catalyst 9500 10Y DNA Essentials, HW

Description



Quick Specs

Product Code C9500-24Q-10E
Product Description 9500 10Y DNA Essentials, HW
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in

Rack units (RU)

1 RU

MTBF (hours) 230,770
Minimum software requirement Open Cisco IOS XE Software Release 16.5.1a

Product Details

Cisco C9500 Series provide these highlights:

Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) ready for next-generation technologies with its programmable pipeline, microengine capabilities, and template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality-of-Service (QoS) entries

•Intel® 2.4-GHz x86 CPU with up to 120 GB of USB 3.0 or up to 960 GB of SATA SSD storage for container-based application hosting

•Up to 6.4-Tbps switching capacity with up to 2 Bpps of forwarding performance

•Up to 32 nonblocking 100 Gigabit Ethernet QSFP28 ports

•Up to 32 nonblocking 40 Gigabit Ethernet QSFP+ ports

•Up to 48 nonblocking 25 Gigabit Ethernet SFP28 ports

•Up to 48 nonblocking 10 Gigabit Ethernet SFP+ ports

•Platinum-rated AC/DC power supplies

•Up to 512,000 Flexible NetFlow (FNF) entries in hardware

•Up to 36 MB of unified buffer per ASIC

•Up to 212,000 routing entries (IPv4/IPv6) for high-end campus core and aggregation deployments

•IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks

•IEEE 802.1ba AV Bridging (AVB) built in to provide a better AV experience through improved time synchronization and QoS

•Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond accuracy, making it suitable for distribution and synchronization of time and frequency over the network

•Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration

•Support for both static and dynamic NAT and Port Address Translation (PAT)

•Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables

•Cisco IOS® XE Software, a modern operating system for the enterprise with support for model-driven programmability, on-box Python scripting, streaming telemetry, container-based application hosting, and patching for critical bug fixes. The OS also has built-in defenses to protect against

runtime attacks

•StackWise Virtual technology, a network system virtualization technology that increases operational efficiency and boosts nonstop communications and scaled system bandwidth

•SD-Access: With the Cisco Catalyst 9500 Series, you can be part of the future of networking with features that include:

-Policy-based automation from edge to cloud

-Segmentation and micro-segmentation made easy, with predictable performance and scalability

-Automation and network assurance through the Cisco DNA Center Appliance

-Faster launch of new business services and significantly improved issue resolution time

•Cisco Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network

•Advanced security:

-Encrypted Traffic Analytics (ETA): You benefit from the power of machine learning to identify and take actions toward threats or anomalies in your network, including malware detection in encrypted traffic and distributed anomaly detection. Additionally, ETA is able to detect vulnerable implementations in encrypted traffic

-Support for AES-256 with the powerful MACsec 256-bit encryption algorithm available on all models

-Trustworthy solutions: Secure Unique Device Identification (SUDI) support for Plug and Play, enabling tamper-proof device identity capability, which secures zero-touch provisioning by allowing your device to show a certificate to the server to be able to get onto your network

The Modules, Cards, Licenses

Category

Model

Description

Software Subscription

C9500-DNA-A-3Y

Catalyst 9500 NW & DNA Advantage license (3Y)

C9500-DNA-A-5Y

Catalyst 9500 NW & DNA Advantage license (5Y)

C9500-DNA-A-7Y

Catalyst 9500 NW & DNA Advantage license (7Y)

C9500-DNA-E-3Y

Catalyst 9500 NW & DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU

C9500-DNA-E-5Y

C9500-DNA-E-7Y

Power Supply

PWR-C4-950WAC-R

950W AC Config 4 Power Supply front to back cooling

Console Cables

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Compare to Similar Items

Product Code

C9500-40X-10E C9500-24Q-10E

Description

9500 10Y DNA Essentials, HW 9500 10Y DNA Essentials, HW

Switching capacity

Up to 960 Gbps

Up to 1920 Gbps

Forwarding rate

Up to 720 Mpps

Up to 1440 Mpps

Product Code

16G

16 G

Description

16G

16 G

Dimensions (H x W x D)

1.73 x 17.5 x 21.52 in

1.73 x 17.5 x 21.52 in

Rack units (RU)

1RU

1RU



C9500-24Q-10E Specification

C9500-24Q-10E Specification

Product Code C9500-24Q-10E
Product Description 9500 10Y DNA Essentials, HW
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in

Rack units (RU)

1 RU

Minimum software requirement Open Cisco IOS XE Software Release 16.5.1a

ASIC

UADP 2.0

Switching capacity

Up to 1920 Gbps

Forwarding rate

Up to 1440 Mpps

Total number of MAC addresses

Up to 64,000

Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)

Up to 64,000 indirect

Up to 80,000 host

Total number of IPv6 routes

Up to 32,000 indirect

Up to 40,000 host

Total number of IPv4 Multicast routes

Up to 32,000

Total number of IPv6 Multicast routes

Up to 16,000

QoS ACL scale

Up to 18000

Security ACL scale

Up to 18000

FNF entries

Up to 512,000

DRAM

16 GB

Flash

16 GB

VLAN IDs

4094

Total Switched Virtual Interfaces (SVIs)

4000

Jumbo frame

9198 bytes

Safety certifications





C9500-12Q, C9500-24Q, C9500-40X,C9500-16X

•UL 60950-1

•CAN/CSA-C22.2 No. 60950-1

•EN 60950-1

•IEC 60950-1

•AS/NZS 60950-1

•GB4943

C9500-32C, C9500-32QC, C9500-24Y4C, C9500-48Y4C

•IEC 60950-1 plus Am1, Am2 Am9, Am10, Am11, Am12 and all deviations and differences

•AS/NZS 60950.1.2011

•CAN/CSA-C22.2 No. 60950-1-07

•GB 4943-95

•EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences

•NOM-019-SCFI-1998

•UL 60950-1, Second Edition

EMI and EMC compliance

•47 CFR Part 15 Class A

•CNS13438: 2006 Class A

•EN 300 386 V1.6.1

•EN61000-3-2: 2014

•EN61000-3-3: 2013

•ICES-003 Issue 6: 2016 Class A

•KN 32: 2015 Class A

•TCVN 7189: 2009 Class A

•EN 55032:2012/ AC:2013 Class A

•EN 55032:2015 Class A

•CISPR 32 Edition 2 Class A

•V-2/2015.04 Class A

•V-3/2015.04 Class A

•CISPR24: 2010 + A1: 2015

•EN 300 386 V1.6.1

•EN55024: 2010 + A1: 2015

•KN35: 2015

•TCVN 7317: 2003

Input voltage

90 to 264 VAC

Operating temperature

32°to 104°F (0°to 40°C)

Storage temperature

-4°to 149°F (-20°to 65°C)

Relative humidity operating and nonoperating noncondensing





Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

NEBS criteria levels





NEBS:

•Normal operating temperature range: 5C to 40C (up to 1829 meters (6000 ft)

•Short term operating temperature range: -5C to 55C

•Normal Relative Humidity range: 5% to 85%

•Short term Relative Humidity range: 5% to 93%

•Operating Altitude: up to 1829 m (6000 ft) at 55C

•ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations.

•SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue

Altitude

Operation up to 13,000 feet at 40°C

MTBF (hours)

230,770
