C9300-48S-A

฿540,000.00 ไม่รวม VAT

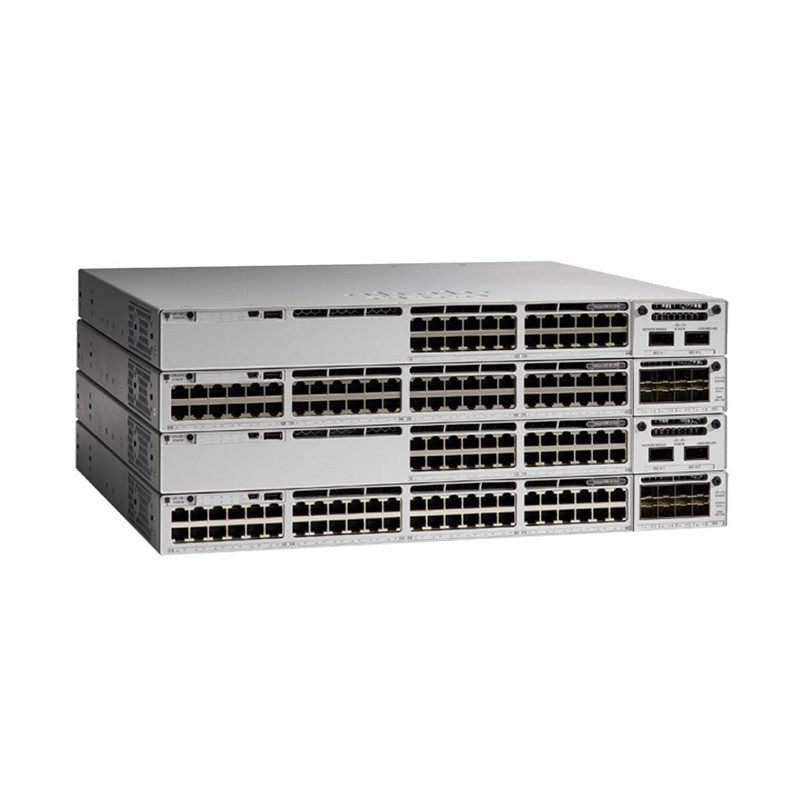

Catalyst 9300 48 GE SFP Ports, modular uplink Switch

Description



Product Code C9300-48S-A
Product Description Catalyst 9300 48 GE SFP Ports, modular uplink Switch
Total 10/100/1000 or Multigigabit copper ports 48x 1G SFP
Uplink Configuration Modular Uplinks
Default AC power supply 715W AC
Available PoE power N/A
Dimensions (H x W x D) 1.73 x 17.5 x 17.7Inches

The Accessories

Table 2 shows the recommended elements for the C9300-48SA.

Product number

Description

C9300-NM-4G

9300 Series 4x 1G Network Module

C9300-NM-4G=

Catalyst 9300 4 x 1GE Network Module, spare

C9300-NM-8X

9300 Series 8x 10G Network Module

C9300-NM-8X=

Catalyst 9300 8 x 10GE Network Module, spare

C9300-NM-2Q

9300 Series 2x 40G Network Module

C9300-NM-2Q=

Catalyst 9300 2 x 40GE Network Module, spare

C9300-NM-4M

9300 Series 4x Multigigabit Network Module

C9300-NM-4M=

Catalyst 9300 4 x MGig Network Module, spare

Compare to Similar Items

Table 3 shows the comparison.

Product Code

C9300-48P-A

C9300-48S-A

Product Description

Catalyst 9300 48-port PoE+, Network Advantage

Catalyst 9300 48 GE SFP Ports, modular uplink Switch

Total 10/100/1000 or Multigigabit copper ports

48 POE+

48x 1G SFP
Uplink Configuration Modular Uplinks Modular Uplinks

Default AC power supply

715W AC

715W AC

Available PoE power

437W

N/A

Dimensions (H x W x D)

1.73 x 17.5 x 17.5 Inches

1.73 x 17.5 x 17.7 Inches



C9300-48S-A Specification

C9300-48S-A Specification

Product Code C9300-48S-A
Product Description Catalyst 9300 48 GE SFP Ports, modular uplink Switch
Total 10/100/1000 or Multigigabit copper ports 48x 1G SFP
Uplink Configuration Modular Uplinks
Default AC power supply 715W AC
Available PoE power N/A
Dimensions (H x W x D) 1.73 x 17.5 x 17.7 Inches
Cisco StackWise-480 Yes
Cisco StackPower Yes
Default power supply PWR-C1-715WAC-P
Switching capacity 256 Gbps
Stacking bandwidth 736 Gbps
Forwarding rate 190.47 Mpps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)



IPv4 routing entries 32,000
IPv6 routing entries 16,000
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU 16 MB buffer for 24- or 48-port Gigabit Ethernet modelst

32 MB buffer for 24 and 48-port Multigigabit

FNF entries 64,000 flow on 24- and 48-port Gigabit Ethernet models

128,000 flows on 24-port Multigigabit

DRAM 8 GB
Flash 16 GB
VLAN IDs 4094
Total Switched Virtual Interfaces (SVIs) 1000
Jumbo frames 9198 bytes
Total routed ports Catalyst per 9300 Series stack 448
Wireless bandwidth per switch Up to 96 Gbps on 48-port Gigabit Ethernet model
Mean time between failures – MTBF (hours) 281,920
Safety certifications





•UL 60950-1

•CAN/CSA-C222.2 No. 60950-1

•EN 60950-1

•IEC 60950-1

•AS/NZS 60950.1

•IEEE 802.3

Electromagnetic emissions certifications •47 CFR Part 15

•CISPR22 Class A

•EN 300 386 V1.6.1

•EN 55022 Class A

•EN 55032 Class A

•CISPR 32 Class A

•EN61000-3-2

•EN61000-3-3

•ICES-003 Class A

•TCVN 7189 Class A

•V-3 Class A

•CISPR24

•EN 300 386

•EN55024

•TCVN 7317

• V-2/2015.04

•V-3/2015.04

•CNS13438

•KN32

•KN35

•IEC 61000-6-1

•EN 61000-6-1

Environmental Reduction of Hazardous Substances

(ROHS) 5
