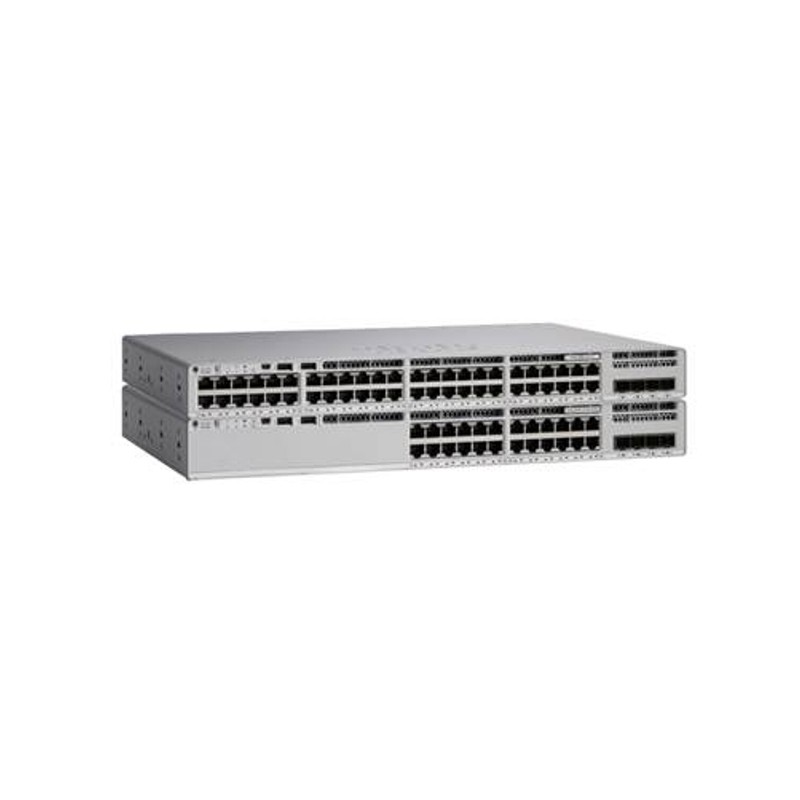

C9200L-24PXG-2Y-E

Catalyst 9200L 24-p 8xmGig, 16x1G, 2x25G, PoE+, Network Essentials

Description



Model C9200L-24PXG-2Y-E
Downlinks total 10/100/1000 or PoE+ copper ports 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)
Uplink configuration 2x 25G fixed uplinks
Default primary AC power supply PWR-C5-600WAC
Fans Fixed redundant
Software Network Essentials
Stacking bandwidth 80 Gbps
DRAM 2 GB
Flash 4 GB
Switching capacity 292 Gbps
Forwarding rate 229.16 Mpps
Chassis Dimensions 1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm

Product Details

Catalyst 9200 series provides these highlights:

●   Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

●   Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks

●   Flexible downlink options with data or PoE+

●   Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps

●   UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

●   Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems

●   Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access

●   Advanced network monitoring using Full Flexible NetFlow

●   Cisco Software-Defined Access (SD-Access):

◦     Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)

◦     Network assurance and improved resolution time through Cisco DNA Center™

●   Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network

●   Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry

●   ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Supported Products

Table 2 shows the recommended supported products.

StackWise-80 and StackWise-160 Kit and cables
Product number Product description
C9200L-STACK-KIT= C9200L Stack Kit Spare
STACK-T4-50CM 50CM Type 3 Stacking Cable
STACK-T4-1M 1M Type 3 Stacking Cable
STACK-T4-3M 3M Type 3 Stacking Cable
Soft Licenses
Product number Product description
C9200L-DNA-P-24 C9200L DNA Premier Term, 24-Port: Includes Term Licenses for DNA Advantage, 25 ISE Base & 25 ISE Plus Endpoints, 25 Stealthwatch Flows (including Virtual Flow Collector & Management Console). Requires separate purchase of ISE appliance/ISE VM and DNA Center appliance
C9200L-DNA-P-24-3Y C9200L DNA Premier, 24-port, 3Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH
C9200L-DNA-P-24-5Y C9200L DNA Premier, 24-port, 5Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH
C9200L-DNA-P-24-7Y C9200L DNA Premier, 24-port, 7Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH
Power supplies
Product Number Product Description
PWR-C5-600WAC/2= 600WAC power supply spare

Compare to Similar Items

Table 3 shows the comparison.

Model Downlinks Uplinks Power Supply Fans
C9200L-24PXG-4X-E 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) 4x 10G fixed uplinks PWR-C5-600WAC Fixed redundant
C9200L-48PXG-4X-E 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) 4x 10G fixed uplinks PWR-C5-1KWAC Fixed redundant
C9200L-24PXG-2Y-E 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) 2x 25G fixed uplinks PWR-C5-600WAC Fixed redundant
C9200L-48PXG-2Y-E 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) 2x 25G fixed uplinks PWR-C5-1KWAC Fixed redundant



C9200L-24PXG-2Y-E Specification

C9200L-24PXG-2Y-E Specification

Downlinks total 10/100/1000 or PoE+ copper ports 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)
Uplink configuration 2x 25G fixed uplinks
Default primary AC power supply PWR-C5-600WAC
Fans Fixed redundant
Software Network Essentials
Chassis Dimensions 1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm

Virtual Networks 1
Stacking bandwidth 80 Gbps
Total number of MAC addresses 16,000
Total number of IPv4 routes (ARP plus learned routes) 11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries 3,000
IPv6 routing entries 1,500
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries 1,500
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM 2 GB
Flash 4 GB
VLAN IDs 1024
Total Switched Virtual Interfaces (SVIs) 512
Jumbo frames 9198 bytes
Wireless bandwidth per switch N/A
Switching capacity 292 Gbps
Forwarding rate 229.16 Mpps
Mean time between failures (hours) 374,730
